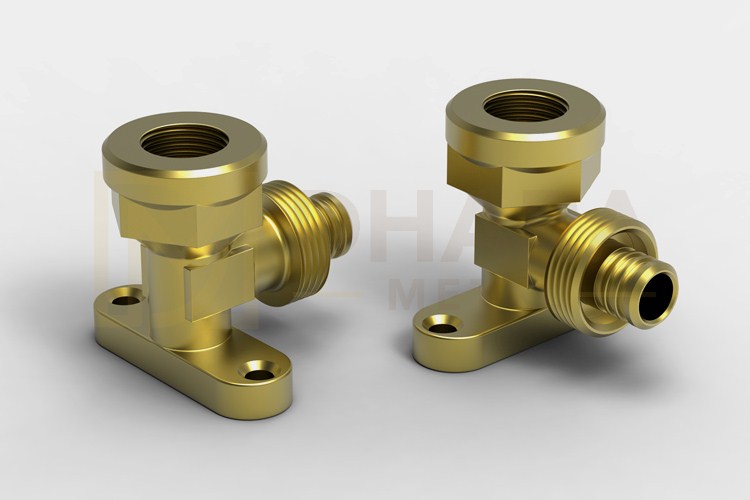

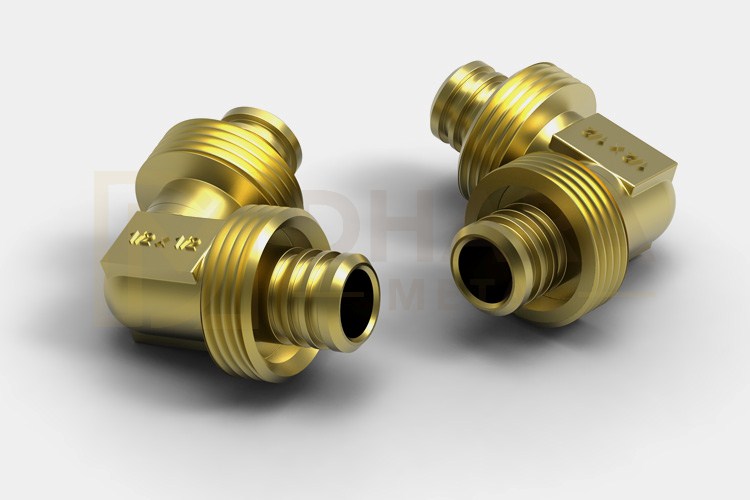

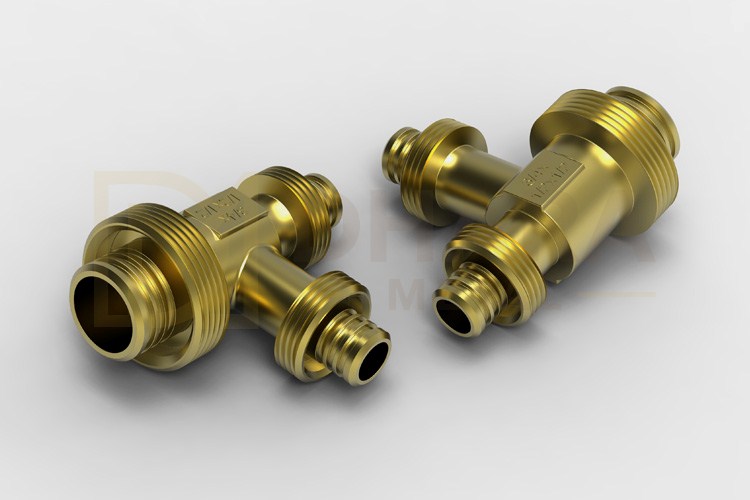

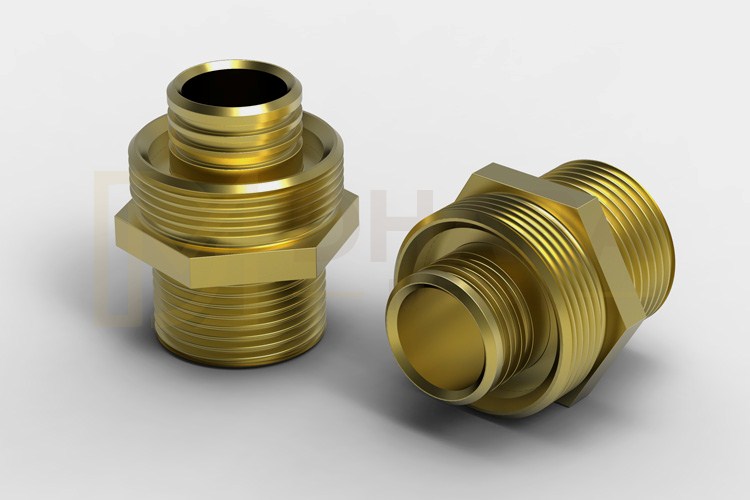

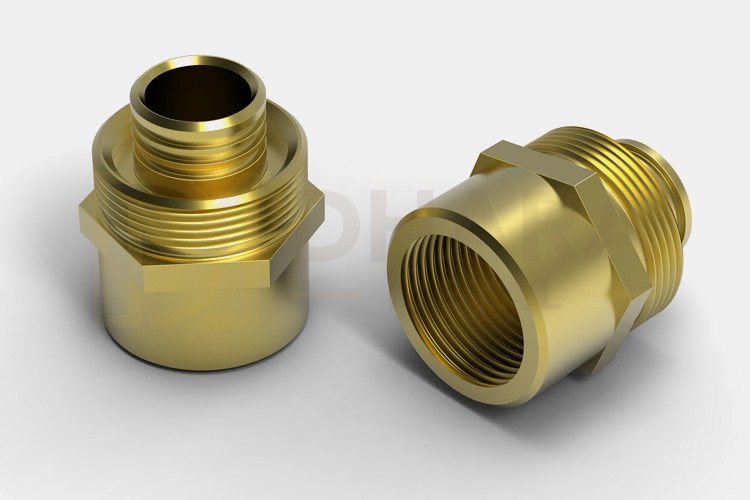

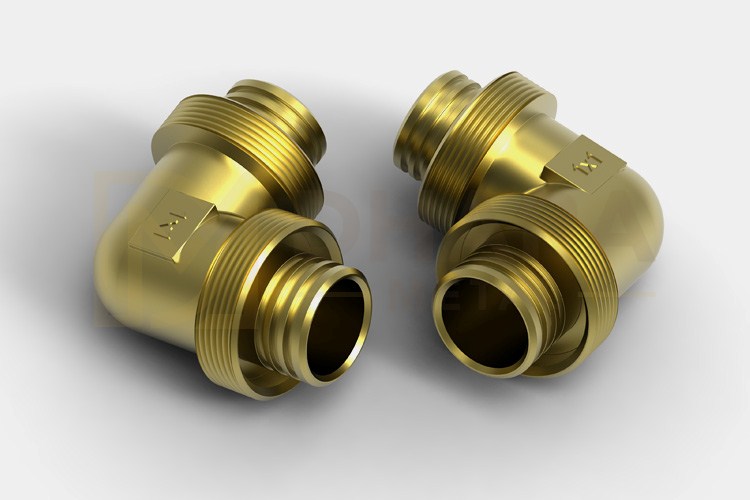

Brass Pipe Fittings

Home Products
  • Brass Turned Components
  • Copper Metal Turned Components
  • Aluminium Components
  • Stainless Steel Components
  • Mild Steel Components
  • Sheet Metal Components
  • Earthing & Grounding Accessories
  • Brass Electrical Components
  • Brass Plumbing Fittings
  • Brass Pipe Fittings
  • Brass Hose Barb Fittings
  • Brass Sanitary Fittings
  • Brass PPR & CPVC Fittings
  • Brass Lamp Parts
  • Brass & MS Fasteners
  • Brass Automotive Components

Do you need any help?

+91 94267 87636

info@dharametal.com

Inquire Now

Description

Our esteemed clients can avail from us an extensive range of Brass Pipe Fittings are made up of high-grade raw material and are strong and sturdy in nature as well. Our products are widely used for industrial purposes and are available at different length, sizes and dimensions as per our client’s specifications. Pipe fitting or pipefitting is the occupation of installing or repairing piping or tubing systems that convey liquid, gas, and occasionally solid materials. … Materials, techniques, and usages vary from country to country as different nations have different standards to install the pipe.Adapters are used when connecting two pipes of different types. For example, an adapter could be fitted on the end of a plain pipe to allow a threaded connection at the other side of the adapter. Bushing Fittings – Bushings, sometimes called reducer bushings, are used for connecting two pipes of different sizes.

Types of Fittings : » 90° Female Elbow
» Adapter
» Female Cross
» Hex Nipple
» Long Nipple
» Square Pipe Plug
» 90° Street Elbow
» Cap Nut
» Female Coupling
» Hex Pipe Plug
» Reducing Nipple
» Hex Reducing Coupling
» 45° Street Elbow
» Close Nipple
» Female Pipe Tee
» Hex Socket
» Reducer Bush
» Female Run Tee
Material : » Free Cutting Brass IS 319 ( I ) / BS 249 / CZ121Pb3
» Free Cutting Brass IS 319 ( II ) / CZ124
» Free Cutting Brass IS 319 ( III ) / BS 249
» High Grade Free Cutting Brass
» Any Special Brass Material Composition as per customer requirements.
Working Pressure : 1,200 PSI Maximum based on size ALWAYS consult tubing/pipe specifications
Threads : ISO metric, MM, PG, BSW, BSP, BSB, BSF, BA, NPT, NPTF, UNC, UNF, UNEF etc, Any threads as per customer's design
Length / Size : As Per Customer Specification
Finish And Coating : Natural, Nickel Plated, Tin Plated or any coating as per customer specification
